DONMAR RearView Camera Systems

DONMAR Sunroofs & Accessories
RearView Parking Assist Systems
170 degree View See Behind You! Croswalk Sign

Avoiding parking lot fender benders can save money, headaches and lives. DONMAR offers a range of premium automotive cameras and displays for better driver awareness and peace of mind.
Our rearview systems are manufactured by OEM suppliers, assuring quality and durability.
Professional installation required.

According to J.D. Power & Associates, 74% of consumers are interested in backup assist systems.
U.S. D.O.T is proposing NHSTA regulations to require that all passenger vehicles be equipped with a rear view detection system by 2014.
Get OEM technology NOW, installed aftermarket - DONMAR Has It!

•   Adjustable Cams   •   Fixed Cams   •   Flush Cams   •   License Plate Cams   •
•   Universal Camera Specs   •   OE TGH Cams   •   Heavy Duty Cams   •   LCD Display & Mirrors   •
•   Intelligent Parking Assist   •

Universal Hi-Rez Mini Automotive Cameras
switchable reverse/normal view for backup or front camera

GT Series universal mini cameras are optimized for superior image quality, day or night. A precision ground wide angle glass lense is paired with a high resolution CMOS image sensor to capture greater contrast and detail than most cameras. High Tech CMOS imaging chip incorporates advanced image processing functions, including auto exposure control, auto gain control, auto white balance, lens correction, defective pixel correction, and the industry’s best-in-class low light sensitivity, to provide full-frame images at an extremely fast vertical refresh rate so you get a sharp, clear, fluid video image while moving. Premium CCD image quality, at a competitive CMOS price. Made in China.

Adjustable Angle Cameras

Camera GT-6207C
22mm cube 170º
lip mount, adjustable bracket
Part# GT-6207C

Camera GT-6203C
24mm Bullet 170º
lip mount, adjustable bracket
Part# GT-6203C

**Adjustable Angle Cameras**
22mm cube 170º lip mount, adjustable bracket Part# GT-6207C	24mm Bullet 170º lip mount, adjustable bracket Part# GT-6203C

Fixed Angle Cameras

24mm Cube 170º
lip mount, fixed flange
Part# GT-6508C

22mm Cube 170º
stud mount, fixed position
Part# GT-6402C

Stud Mount Wedge Cameras

Camera GT-T6003
22mm wedge 170º
under lip mount
Part# GT-T6003

Camera GT-T6003V
22mm wedge 170º
vertical panel mount
ideal for tailgate latch
Part# GT-T6003V

**Stud Mount Wedge Cameras**
22mm wedge 170º under lip mount Part# GT-T6003	22mm wedge 170º vertical panel mount ideal for tailgate latch Part# GT-T6003V

Flush Mount Drill-In Camera

Camera GT-6331C
19mm flush 120º
flush mount, drill-in
night vision mode
Part# GT-6331C

Truck w/ Chrome Bumper
Ideal for Trailer Hitch View

Hole Saw Included

**Flush Mount Drill-In Camera**
19mm flush 120º flush mount, drill-in night vision mode Part# GT-6331C	Ideal for Trailer Hitch View Hole Saw Included

License Plate Bar Camera

Camera GT-6350
Black License Plate Bar 170º
adjustable angle camera
Part# GT-6350

Chrome License Plate Bar 170º
adjustable angle camera
Part# GT-6350C

**License Plate Bar Camera**
Black License Plate Bar 170º adjustable angle camera Part# GT-6350	Chrome License Plate Bar 170º adjustable angle camera Part# GT-6350C

Video - Power Lead
Standard RCA Video and 12V power connector
all cameras include 6 meter video cable

Video Cable Options

RG59/U Video Cable
25ft RG59/U RCA M-M Video Cable
minimizes RF signal interference
Part# GT-RCA59-25

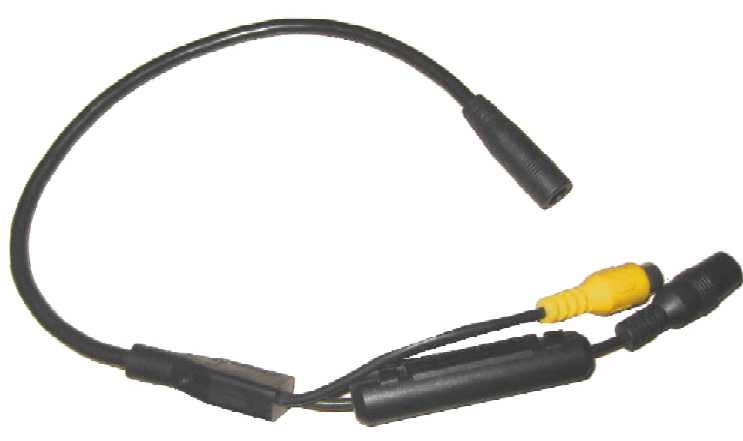

RCA & Pwr Pigtail for Stud Mount Cameras
3.5mm to RCA+PWR Pigtail
for stud mount cameras
Part# GT-RCA-3.5
GT-RCA-FF RCA F-F Barrel Connector RCA Barrel coupler (to make longer video cables)

**Video Cable Options**
25ft RG59/U RCA M-M Video Cable minimizes RF signal interference Part# GT-RCA59-25	3.5mm to RCA+PWR Pigtail for stud mount cameras Part# GT-RCA-3.5

GT Series CMOS Camera Detailed Specifications

Reverse Image (for Backup view)

Universal Mounting Systems

Wide Angle 1.7mm Glass Lens

OV7960 1/3" CMOS Image Sensor

Hi-Resolution CMOS: 480 TV lines

Pixels: 668x576ntsc / 668x512pal

Signal/Noise Ratio: ³ ³ 48dB
Electronic Shutter: 1/60 -1/10,000sec
Fast Vertical Refresh Rate: 60Hz
Minimum Illumination: < 0.5lux
Ultra Low-light Sensitivity of 12v/lux-sec
Automatic Gain Control
Automatic White Balance
Auto Back Light Compensation
Operating Temp: -22~158°f
Operating Humidity: RH 95% Max.
Waterproof IP66
Shockproof
Power DC 12v ±1v, <1w [3V operating]
Body Color: Black
RCA Composite Video output: 1.0vp-p 75 W load
6m RCA Video Cable Included
» Optional Normal Image View (jumper select)
» Parking Grid Overlay

Day & Night Waterproof Shockproof 3/36 Warranty

Tailgate Handle Cameras
OEM Tailgate Handle/Bezel with CCD Camera Made in USA

Brandmotion OEM Tailgate Handle cameras are optimized for superior image quality, day or night. A precision ground wide angle glass lense is paired with a high resolution Panasonic CCD image sensor to capture greater contrast and detail than most cameras. Low 0.3 lux sensitivity with auto white balance and 150 degree viewing angle. RCA output connects to any display. Directly replaces OEM tailgate handle bezel. 3/36 warranty. Chrome overlays also available.

GM Tailgate Camera
BM9002-9560 2007-12 Chevy Silverado
2007-12 GMC Sierra
Chrome Overlay CCITGH65526

Ford Tailgate Camera
BM1008-6501 2004-11 Ford F150
2008-12 Ford SuperDuty
2006-10 Ford Explorer SportTrac
Chrome Overlay CCITGH65511 [use lever only to match oem]

Ford Oval Logo Tailgate Camera
BM1008-6507 2009-12 Ford Oval Logo for F-Series

Dodge Tailgate Camera
BM1009-6503 2009-11 Dodge Ram
Chrome Overlay TBD

Traverse Tailgate Camera
BM1022-95## 2009-12 Chevrolet Traverse
bezel comes primed or factory match colors
Chrome Overlay CCITGH65521X

GT Series Heavy Duty Cameras
Commercial Grade CCD Cameras with IR Night Vision
for Truck & Bus Applications

GT Series commercial grade heavy duty backup cameras are optimized for superior image quality, day or night. Durable metal cases are designed for use in rugged conditions. A precision ground wide angle glass lense is paired with a high resolution CCD image sensor to capture greater contrast and detail than most cameras. High Tech CCD imaging chip incorporates advanced image processing functions, including auto exposure control, auto gain control, auto white balance, lens correction, defective pixel correction, and the industry’s best-in-class low light sensitivity, to provide full-frame images at an extremely fast vertical refresh rate so you get a sharp, clear, fluid video image while moving. Infrared illumination provides crisp clear B&W image in total darkenss. Video cable sold separately. Made in China.

**Adjustable Bracket Mount HD Cameras**
FaceMount 120º adjustable bracket [CCD] Part# GT-9206	Top Mount 120º adjustable bracket, hood [CCD] Part# GT-9880

**Side View HD Cameras**
SideMount 170º fixed angle [CCD] Part# GT-T013S	Turret Mount 120º adjustable [CCD] Part# GT-9307

Adjustable Bracket Mount HD Cameras

FaceMount 120º
adjustable bracket [CCD]
Part# GT-9206

Top Mount 120º
adjustable bracket, hood [CCD]
Part# GT-9880

Dual View HD Cameras

Top Mount Dual View Camera - 95º & 150º
adjustable bracket, IR, sun shield [CCD]
Part# GT-9770

Side View HD Cameras

SideMount 170º
fixed angle [CCD]
Part# GT-T013S

Turret Mount 120º
adjustable [CCD]
Part# GT-9307

Universal Mount Compact LCD Display
3.5in LCD with Dual Channel Input
Display GT-3500A

3.5in 4:3 TFT LCD monitor

Resolution 320x240

anti-glare surface

built-in sun shield

2-channel RCA input

reverse trigger wire (auto-switch to rear view)

5 button controls

adjustable contrast, brightness

optional parking grid overlay (selectable)

shock resistant

360° ball socket swivel bracket

can mount to dash, windshield or ceiling

flexible mounting base (adhesive or screw mount)

Overall dims: 94mm x 75mm x 19mm

DONMAR Part Number GT-M3003

Universal 7in LCD Display
7in LCD with 2 Channel Input & Optional Split Display
ideal for commercial vehicle (bus/truck) and RV applications
image is normal/reverse switchable
7in Display GT-M7003
DONMAR Part Number GT-M7003

Universal 7inQuad-Split LCD Display
7in LCD with 4 Channel Input & Quad Split Display
ideal for commercial vehicle (bus/truck) and RV applications
image is normal/reverse switchable
Quald Split Display GT-M7005
DONMAR Part Number GT-M7005
RCA coupler RCA F-F Barrel Connector required to connect Rear View channel 4

Universal Clip-On Mirror w/LCD Display
7in LCD with Dual Channel Input
ideal for use in panel vans, box trucks and RV's
Display GT-M7006
DONMAR Part Number GT-M7006
clips over existing rearview mirror
bracket mount kits sold separately

OEM Replacement Mirrors w/LCD Display
Magna-Donnelly OEM Mirrors from Brandmotion
Auto-Dimming Mirrors with optional Outside Temp + Compass & OnStar
Made in USA

Slimline OEM Mirror w/ 16:9 LCD Dsiplay
OEM Mirror w/ LCD Dsiplay

3.5in LCD Display Mirror Models:
BM9002-9608 Auto-Dimming, 16x9 wide screen Slimline
BM9002-9515 Auto-Dimming, Standard
BM9002-9516 Auto-Dim, Compass/Temp, Std.
BM9002-9510 Auto-Dim, OnStar, Standard
BM9002-9516 Auto-Dim, Comp/Temp, OnStar Std.
Camlock Microphone
BM5000-CAMLOCK & BM5000-VWAB mounting bracket adaptors for import vehicles
BM5000-PESMVR replacement mic for Ford Synch & Chrysler Uconnect systems

3/36 Warranty

Intelligent Parking Assist Module
Active Parking Trajectory Overlay

Intelligent Parking Assist Module

Intelligent parking assist module interfaces the camera to the OBD-II port, and reads CAN-bus data from electronic stability control system to generate an active parking trajectory pattern on-screen. Similar to OEM parking trajectory systems found on expensive European luxury cars. Works with any camera and display, only on specific vehicles equipped with electronic stability control.

Intelligent Parking Assist - overlay view
DONMAR Part Number GT-7008

Download PDF GT Series Camera Brochure

Download PDF Brandmotion Camera/Mirror Brochure

Important Notes for RearView Camera Systems: RearView Cameras are intended as a parking aid. Due to the wide angle lense and camera position, some obstacles may be closer than they appear, may appear distorted, or may not be visible within the display area. Cameras do not relieve the driver of their responsibility to exercise caution when backing, and to obey all safety rules and regulations. As parking aids, cameras are NOT a substitute for visual verification through use of rearview mirrors and direct view through the rear and side windows.
